Description
Overview:
The SELKIRK Sure-Temp 8 In. Chimney Support Box is an essential component for safely installing a Model SSII chimney system in various settings, including A-frame structures, mobile homes, or ceilings with narrow roof sections. This support box not only ensures a secure and finished installation at the ceiling level but also provides the necessary support for up to 20 feet of 6-inch or 8-inch diameter chimney. Additionally, it offers protection from insulation when installed in unoccupied attic spaces, making it a versatile choice for your chimney installation needs.
Key Features:
- Size: 8 inches in diameter
- Width: 14-1/4 inches
- Height: 24 inches
- Material: Durable galvanized steel
- Designed for use with Model SSII chimney systems
- Supports up to 20 feet of chimney
- Provides shielding from insulation in unoccupied attic spaces

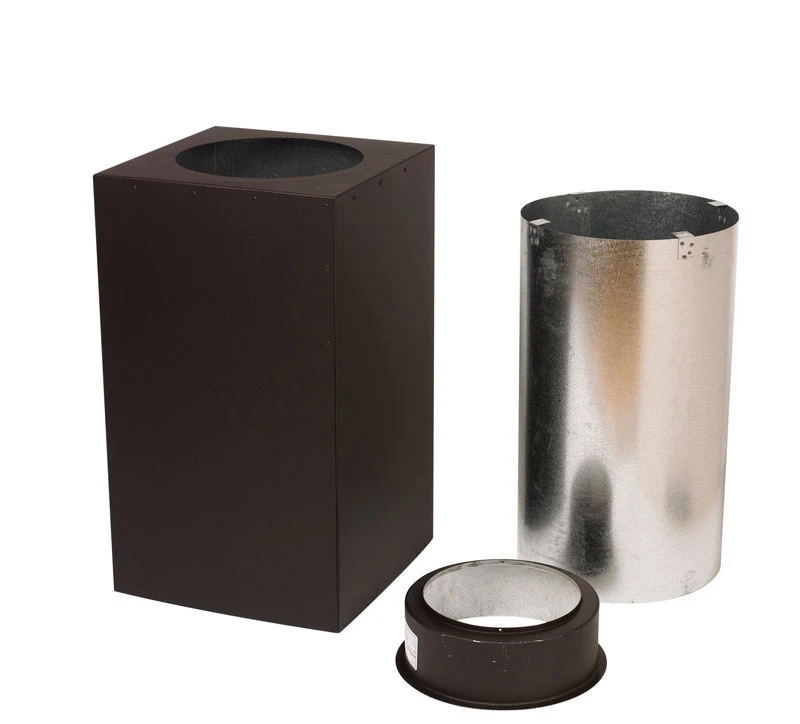

- Assembly includes a black box for installation inside 16-inch O.C. joists
- Comes with a cylindrical shield, support bucket, ceiling trim, and four screws
- Underwriters Laboratories UL 103 HT Certified for safety
- Requires a 2-inch airspace to combustibles
- Maximum continuous operating temperature: 1000 degrees Fahrenheit
- Maximum temperature rating for 60 minutes: 1400 degrees Fahrenheit
- Maximum test temperature for 10 minutes: 2100 degrees Fahrenheit
Use Cases:
This chimney support box is ideal for homeowners looking to install a reliable chimney system in their A-frame homes or mobile residences. Its robust construction and safety certifications make it a trustworthy choice for venting residential heating appliances that burn wood, oil, or gas. Ensure your chimney installation meets safety standards and operates efficiently with the SELKIRK Sure-Temp Chimney Support Box.
